ZX-10G Series Micro Switches |
Features: Specifications Operating Speed 0.01mm-1m/sec Operating Frequency |
Installation dimensions:
![](/en/d/file/p/2020-02-24/ZX-10G尺寸图.jpg) |
Specifications: Operating Speed 0.01mm-1m/sec
Operating Frequency Mechanical: 240ops/min
Electrical: 20 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <15mΩ
Rated Current/Voltage 10A 125VDC
3A 250VDC
Dielectric Strength 1000VAC for 1 min between current carrying parts
1500VAC for 1 min between non- current carrying parts
Service Life Mechanically 1 x106 (operations)
Electrically 1 x105 (operations)
Operating Temperature -40~+105oC (-40~221oF)
Humidity 35%~85%RH
Degree of Protection IP00
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Specifications
Operating Speed
|
0.01mm-1m/sec
|
Operating Frequency
|
Mechanical: 240ops/min
Electrical: 20 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<15mW
|
Rated Current/Voltage
|
10A 125VDC
3A 250VDC
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
1500VAC for 1 min between non- current carrying parts
|
Service Life
|
Mechanically 1 x106 (operations)
Electrically 1 x105 (operations)
|
Operating Temperature
|
-40~+105oC (-40~221oF)
|
Humidity
|
35%~85%RH
|
Degree of Protection
|
IP00
|
![未命名-1.jpg](/en/d/file/product.html/micro_switches/ZD-10G_series_micro_switches/2015-11-04/03d3898b2f7af0a0a58fe8c3e8b75384.jpg)

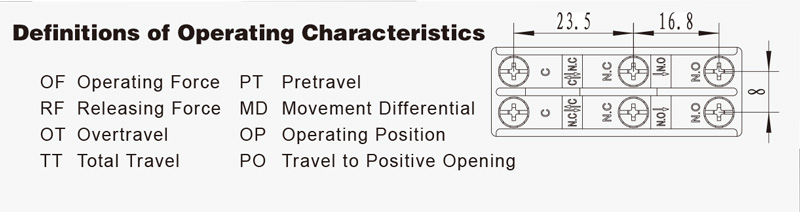

![65646.jpg](/en/d/file/product.html/micro_switches/ZD-10G_series_micro_switches/2015-11-04/3d2ad4b7fa939dcedae70a980c4a0712.jpg)

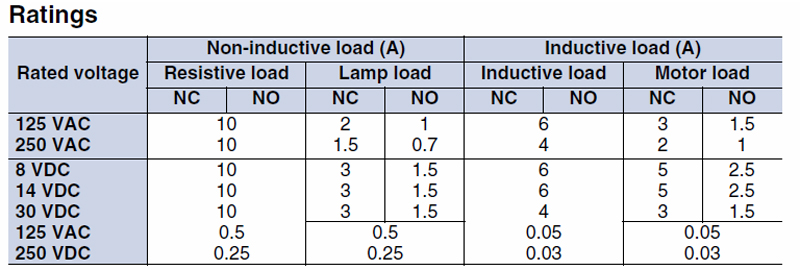

![IMG_18112015_224132.jpg](/en/d/file/p/2015-11-21/IMG_18112015_224132.jpg)
